Time Node¶
Time Node.¶
The Time node generates a factor value (from 0.0 to 1.0) that changes according to the curve as time progresses through the Timeline.
Inputs¶
This node has no inputs.
Properties¶

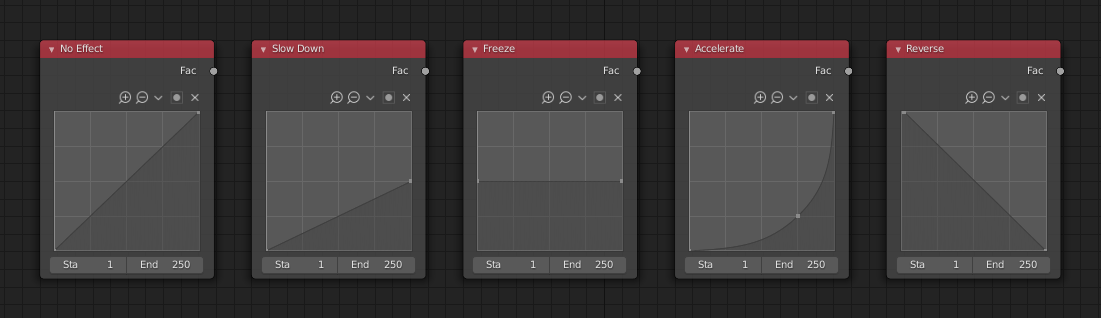

- Curve
The Y value defined by the curve is the factor output. For the curve controls see: Curve widget.
Truco
Flipping the curve around reverses the time input, but doing so is easily overlooked in the node setup.
- Start, End
Start frame and End frame of the range of time specifying the values the output should last. This range becomes the X axis of the graph. The time input could be reversed by specifying a start frame greater than the end frame.
Outputs¶
- Factor
A speed of time factor (from 0.0 to 1.0) relative to the frame rate defined in the Render Dimensions Panel. The factor changes according to the defined curve.
Consejo
Output values
The Map Value node can be used to map the output to a more appropriate value. With sometimes curves, it is possible that the Time node may output a number larger than one or less than zero. To be safe, use the Min/Max clamping function of the Map Value node to limit output.
