2D Transform
The 2D Transform modifier applies two-dimensional scaling and/or rotation to the stroke backbone geometry. Scale is applied before rotation.
- Pivote
The center (pivot point) of these 2D transformations can be:
- Stroke Center
The median point of the stroke.
- Stroke Start
The beginning point of the stroke.
- Stroke End
The end point of the stroke.
- Stroke Point Parameter
The Stroke Point Parameter factor controls where along the stroke the pivot point is (start point if set to 0.0; end point if set to 1.0).
- Absolute 2D Point
The Pivot X and Y values define the position of the pivot point in the final render (from the bottom left corner).
Importante
Currently, you have to take into account the real render size, i.e. resolution and resolution percentage.
- Escala X, Y
The scaling factors, in their respective axes.
- Ángulo de rotación
The rotation angle.

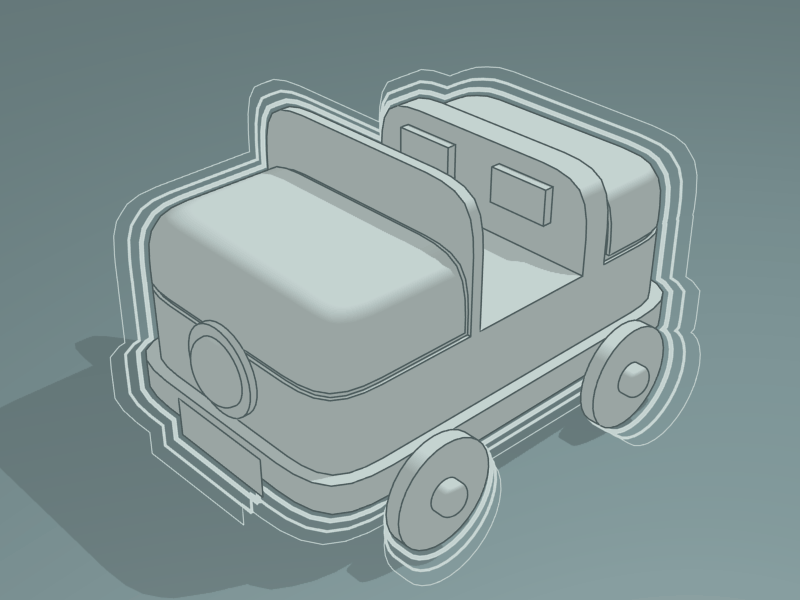

2D Transform modifier (blend-file).
