Collision

Reference

Mode:

Object Mode

Panel:

Physics ‣ Collision

Particles, Soft Bodies and Cloth objects may collide with mesh objects. Boids try to avoid Collision objects.

  • You may limit the effect on particles to a group of objects (in the Field Weights panel).

  • Deflection for soft body objects is difficult, they often penetrate the colliding objects.

  • Hair particles ignore deflecting objects (but you can animate them as soft bodies which take deflection into account).

If you change the deflection settings for an object you have to recalculate the particle, soft body or cloth system by Delete Bake, this is not done automatically.

../_images/physics_collision_toggle.png

A collider object can be temporarily disabled via an animatable toggle to the right of the button that permanently activates or deactivates it.

Options

../_images/physics_collision_panel.png

Collision panel.

Collision

Field Absorption

A deflector can also deflect effectors. You can specify some collision/deflector objects which deflect a specific portion of the effector force using the Field Absorption value. 100% absorption results in no force getting through the collision/deflector object at all. If you have three collision object behind each other with e.g. 10%, 43% and 3%, the absorption ends up at around 50% \(100 × (1 - 0.1) × (1 - 0.43) × (1 - 0.03)\).

Particle

Permeability

Fraction of particles passing through the mesh.

Stickiness

How much particles stick to the object.

Kill Particles

Deletes Particles upon impact.

Damping

Damping during a collision (independent of the velocity of the particles).

Randomize

Random variation of damping.

Friction

Friction during movements along the surface.

Randomize

Random variation of friction.

Soft Body and Cloth

It is also important to note that this collision panel is used to tell all simulations that this object is to participate in colliding/deflecting other objects on a shared layer (particles, soft bodies, and cloth).

ملاحظة

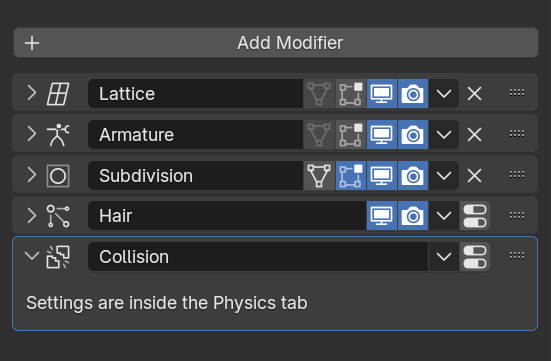

The object's shape deforms the cloth, so the cloth simulation must be inputted the "true" shape of that mesh object at that frame. This true shape is the basis shape as modified by shape keys or armatures. Therefore, the Collision Modifier must be after any of those. The image to the right shows the Modifiers panel for the Character mesh object (not the cloth object).

Damping

Damping during a collision. The amount of bounce that the surfaces will have.

  • 0.0 - No damping, soft bodies will have a maximum bounciness.

  • 1.0 - Maximum damping, soft bodies will not bounce at all.

Thickness

A padding distance is added to the inside and outside of each face, to help to prevent intersections. The soft body will come to rest at this distance away from the face of the colliding object. Outside and inside is defined by the face normal, depicted as blue arrow in Fig. A soft body vertex colliding with a plane..

Outer

Size of the outer collision zone.

Inner

Size of the inner collision zone (padding distance).

../_images/physics_collision_outer-inner.png

A soft body vertex colliding with a plane.

Friction

A coefficient for how slippery the cloth is when it collides with itself. For example, silk has a lower coefficient of friction than cotton.

Single Sided

When enabled, the collider is considered to represent the boundary of a solid object rather than a thin surface, and ejects intersecting cloth in the direction of its normal.

Override Normals

When enabled, cloth collision impulses act in the direction of the collider normals.

ملاحظة

Soft body collisions are difficult to get perfect. If one of the objects move too fast, the soft body will penetrate the mesh. See also the section about Soft Bodies.

Examples

../_images/physics_collision_defected-particles.png

Deflected particles.

Here is a Meta object, using Instancing Vertices to a particle system emitting downwards, and deflected by a mesh cube.

Hints

  • Make sure that the normals of the mesh surface are facing towards the particles/points for correct deflection. Negative scales on the object can have a similar effect. Make sure to recalculate the normals after applying the scale.

  • Hair particles react directly to force fields, so if you use a force field with a short range you do not need necessarily collision.

  • Hair particles avoid their emitting mesh if you edit them in Particle Edit Mode. So you can at least model the hair with collision.
