Attribute Fill¶

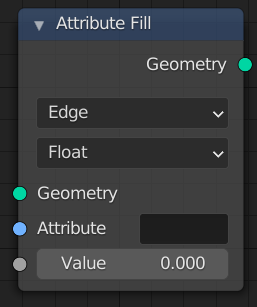

The Attribute Fill node.¶

The Attribute Fill node sets the value for every element of the attribute with the input name to the input value.

Vstupy¶

Geometria: Štandardný vstup geometrie.
Atribút: The name of the attribute to fill with the value. If the attribute doesn’t exist yet, it will be created.
Hodnota: A value of the data type to fill the attribute with.

Oblasť vplyvu

Domain of the output attribute.

Automaticky: Chooses the domain of the attribute if it exists already, otherwise it uses the Point domain.
Bod: Store the resulting attribute per point.
Hrana: Store the resulting attribute per edge.
Plôška (Tvár): Store the resulting attribute per face.
Roh plôšky: Store the resulting attribute per face corner

Typ údajov

The type of data to fill the attribute with.
