Attribute Sample Texture

../../../_images/modeling_geometry-nodes_attribute_attribute-sample-texture_node.png

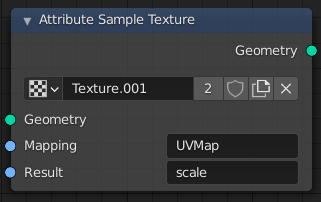

Attribute Sample Texture node.

The Attribute Sample Texture node evaluates a texture for every point and stores the resulting colors in a new attribute. The mapping attribute can be anything that can be converted to a 3D vector. Typically, either the name of a UV map or the position attribute is used.

Poznámka

UV maps can only be accessed after a Point Distribute node currently. This is a limitation that will be resolved.

An Attribute Sample Texture node can be added quickly by dragging a texture data-block into the node editor.

Vstupy

Geometria

Štandardný vstup geometrie.

Mapovanie

Name of the attribute that determines where the texture is evaluated.

Výsledok

Name of the attribute where the results are stored.

Vlastnosti

Textúra

The texture the node should sample colors from.

Výstupy

Geometria

Štandardný výstup geometrie.
