Introduction

After starting Blender and closing the Splash Screen your Blender window should look something similar to the image below. Blender’s user interface is consistent across all platforms.

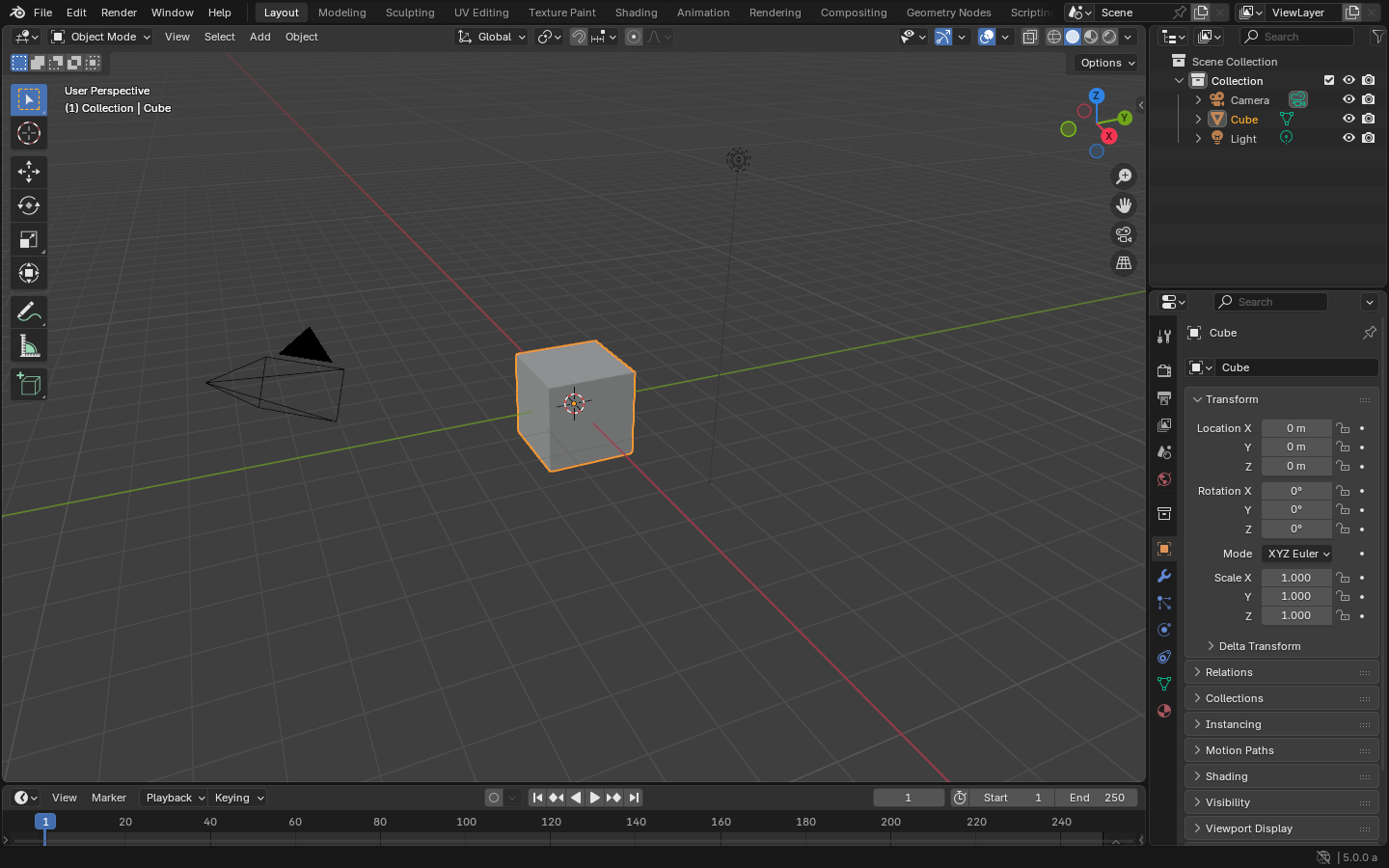

../../_images/interface_window-system_introduction_default-startup.png

The default startup Blender window.

Interface Elements

Blender’s interface is separated into three parts listed below:

  • Top bar at the very top.
  • Editors area in the middle.
  • Status bar at the bottom.

The large editors screen is further subdivided into Areas containing the different editors. The interface can be customized to match specific tasks using workspaces, which can then be named and saved for later use. The Layout workspace is described below.

../../_images/interface_window-system_introduction_default-screen.png

Blender’s default Screen Layout. Top bar (blue), Editors (green) and Status bar (red).

The Layout Workspace

Blender default startup shows the „Layout“ workspace in the editors screen. This workspace contains the following Editors:

  • 3D View on top left.
  • Outliner on top right.
  • Properties editor on bottom right.
  • Timeline on bottom left.
../../_images/interface_window-system_introduction_layout-workspace.png

Blender’s Layout Workspace with four editors.

3D View (yellow), Outliner (green), Properties editor (blue) and Timeline (red).

Components of an Editor

In general an editor provides a way to view and modify your work through a specific part of Blender.

Editors are divided into Regions. Regions can have smaller structuring elements like tabs and panels with buttons, controls and widgets placed within them.

../../_images/interface_window-system_regions_3d-view.png

The 3D View editor.

Header (green), Main region (yellow), Toolbar (blue), Sidebar (red) and Operator panel (pink).

User Interface Principles

Non-Overlapping
The UI is designed to allow you to view all relevant options and tools at a glance without pushing or dragging editors around.
Non-Blocking
Tools and interface options do not block the user from any other parts of Blender. Blender typically does not use pop-up boxes (requiring users to fill in data before running an operation).
Non-Modal Tools
Tools can be accessed efficiently without taking time to select between different tools. Many tools use consistent and predictable, mouse and keyboard actions for interaction.

Customization

Blender also makes heavy use of keyboard shortcuts to speed up work. These can also be customized in the Keymap Editor.

Theme colors

Blender allows for most of its interface color settings to be changed to suit the needs of the user. If you find that the colors you see on screen do not match those mentioned in the Manual then it could be that your default theme has been altered. Creating a new theme or selecting/altering a pre-existing one can be done by selecting the Preferences editor and clicking on the Themes tab.
