Nó Textura de céu#

Nó Textura de céu.

O nó Textura de céu adiciona uma textura de Céu procedural.



Coordenada de textura para amostrar a textura em; padrão para coordenadas de textura Geradas se o soquete é deixado desconectado.


Tipo de céu

Modelo de céu para usar


Based on the 1999 paper by Preetham et al.


Based on the 2012 paper by Hosek and Wilkie.


Improved version of the 1993 model by Nishita et al.

Direção do Sol

Vetor de direção do sol


Turbidez atmosférica.

  • 2: Arctic like

  • 3: céu limpo

  • 6: dia quente/úmido

  • 10: dia nublado

Albedo para base

Amount of light reflected from the planet surface back into the atmosphere.

Sun Disc Cycles Only

Enable/Disable sun disc lighting.

Sun Size

Angular diameter of the sun disc (in degrees).

Sun Intensity

Multiplier for sun disc lighting.

Sun Elevation

Rotation of the sun from the horizon (in degrees).

Sun Rotation

Rotation of the sun around the zenith (in degrees).


The distance from sea level to the location of the camera. For example, if the camera is placed on a beach then a value of 0 should be used. However, if the camera is in the cockpit of a flying airplane then a value of 10 km will be more suitable. Note, this is limited to 60 km because the mathematical model only accounts for the first two layers of the earth’s atmosphere (which ends around 60 km).


Density of air molecules.

  • 0 no air

  • 1 clear day atmosphere

  • 2 highly polluted day


Density of dust and water droplets.

  • 0 no dust

  • 1 clear day atmosphere

  • 5 city like atmosphere

  • 10 hazy day


Density of ozone molecules; useful to make the sky appear bluer.

  • 0 no ozone

  • 1 clear day atmosphere

  • 2 city like atmosphere



Saída de cor da textura.

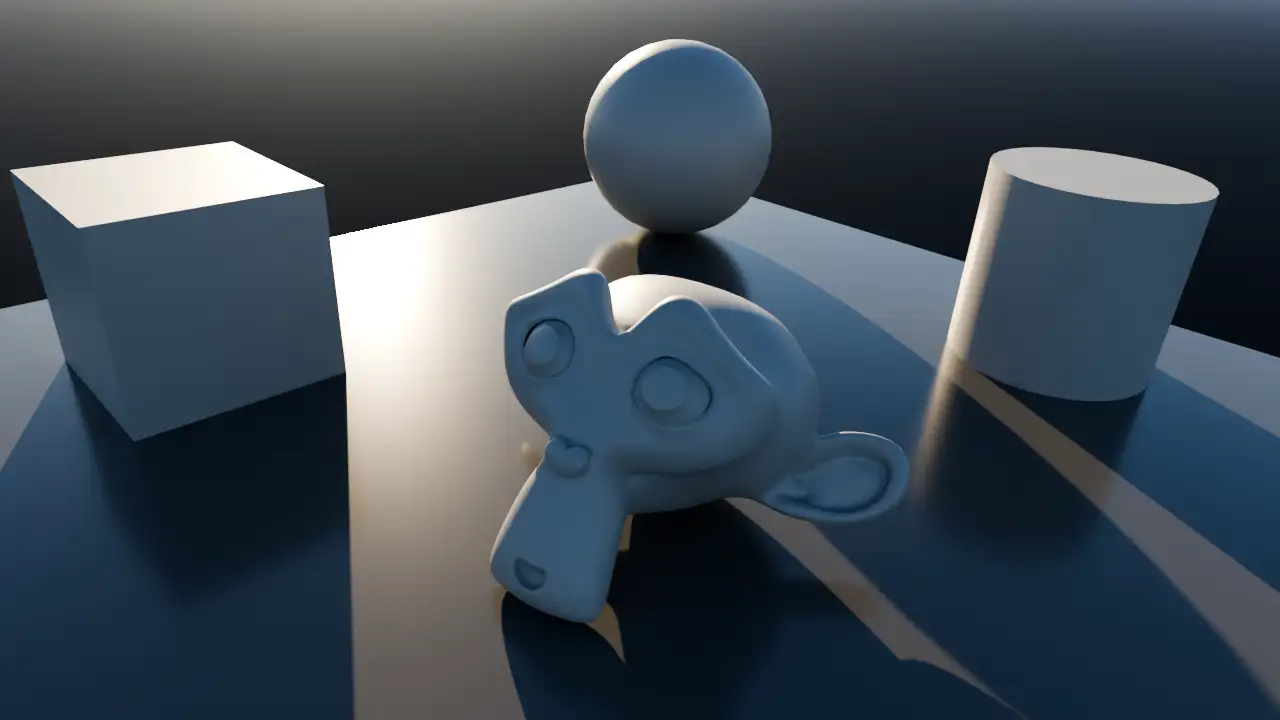

Example of Sky Texture.#

Veja também

Sun Position add-on
