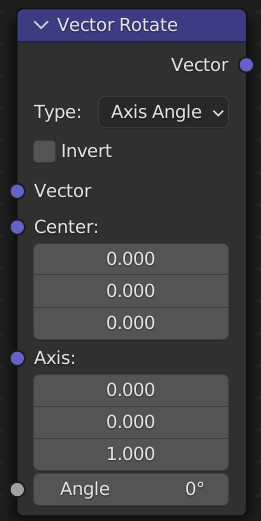

Vector Rotate Node¶

The Vector Rotate Node provides the ability to rotate a vector around a pivot point (Center).

შენატანები¶

Vector: Vector to be rotated.
ცენტრი (Center): Point to rotate around.
ღერძი (Axis): Axis to rotate around.
კუთხე (Angle): Angle to rotate the input vector by.
ბრუნვა (Rotation): When Type is set to Euler, rotate the input vector by these angles around the X, Y, then Z axes in that order.

ტიპი (Type)

The type of angle input.

X/Y/Z Axis:: Rotates the vector around the defined axis and the amount of rotation is defined by the Angle input.
ღერძის კუთხე (Axis Angle):: Rotates the vector around an arbitrary axis defined by the Axis input vector. The amount of rotation is defined by the Angle input.
ეილერი (Euler):: Rotates the vector about a center point defined by the Center input vector. The amount of rotation on each axis is defined by the Rotation input vector.

შებრუნება / შექცევა (Invert)

Inverts the rotation angle.
