Node info d’objecte

The Object Info node gives information about the object instance. This can be useful to give some variation to a single material assigned to multiple instances, either manually controlled through the object index, based on the object location, or randomized for each instance. For example a Noise texture can give random colors or a Color Ramp can give a range of colors to be randomly picked from.

Entrades

Aquest node no té entrades.

Propietats

Aquest node no té cap propietat.

Sortides

Ubicació

Ubicació de l’objecte en l’espai del món.

Color

Object color, same as Color in the Properties ‣ Object Properties ‣ Viewport Display.

Alfa

The Alpha Channel component of the object’s viewport display color (see the Color output for more details).

Object Index

Object pass index, same as Pass Index in the Properties ‣ Object Properties ‣ Relations.

Índex de material

Material pass index, same as Pass Index in the Properties ‣ Material ‣ Settings.

Aleatori

Nombre aleatori únic a una sola instància d’objecte. L’egressió és un flotant entre 0,0 i 1,0

Nota

Note that this node only works for material shading nodes; it does nothing for light and world shading nodes.

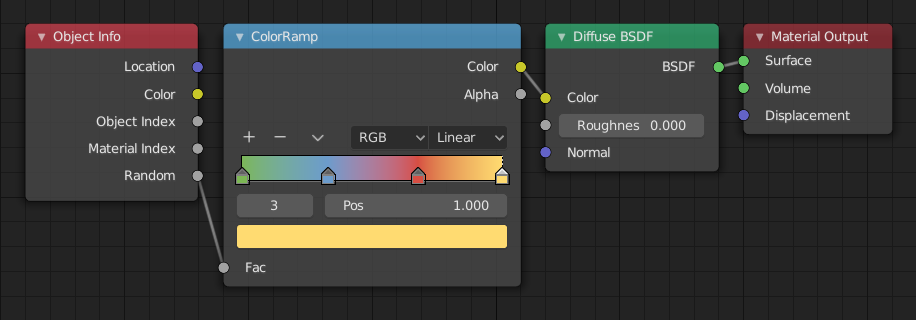

Exemple

Example blend-file.
