Bộ Đường Nét (Line Set)

Tham Chiếu (Reference)

Panel (Bảng):

Tính Chất (Properties) ‣ Tầng Góc Nhìn (View Layer) ‣ Bộ Đường Nét Phong Cách Tự Do (Freestyle Line Set)

A line set selects, among the lines (edges) detected by Freestyle, which ones will be rendered using its attached line style, through various methods.

Bảng Bộ đường nét Phong Cách Tự Do.

Chọn theo (Select By)

Ranh Giới Hình Ảnh (Image Border)

Causes Freestyle to only take geometry within the image border into consideration for line calculation. This reduces render times but increases continuity problems when geometry is moved out of and into camera view.

Ẩn-Hiện/Tầm Nhìn (Visibility)

Thể Loại (Type)

Xác định cách sử dụng tầm nhìn trong việc lựa chọn cạnh viền hình thể.

Hữu Hình (Visible):

Only lines occluded by no surfaces are rendered.

Ẩn Giấu (Hidden):

Lines occluded by at least one surface are rendered.

Proof of concept of visible and hidden edges by LightBWK (blend-file).

Quantitative Invisibility:

Lines occluded by a number of surfaces in the given range are rendered.

Khởi Đầu, Kết Thúc (Start, End)

Min/max number of occluding surfaces for a line to be rendered.

QI Range proof of concept demo, Start: 3, End: 7, by LightBWK (blend-file).

Thể Loại Cạnh (Edge Types)

Edge types are basic algorithms for the selection of lines from geometry. When using the parameter editor you have to choose at least one edge type in order to get a render output, but several edge types can be combined in one line set. Edge types can also be excluded from calculation by pressing the X next to them.

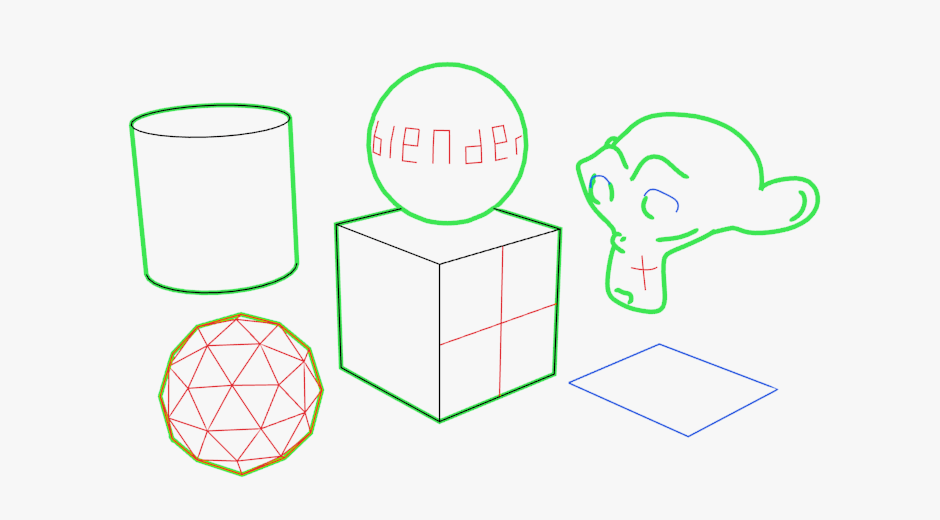

Examples of some basic edge types: Silhouette (green), Crease (black), Border (blue) and Edge Marks (red) (blend-file by LightBWK).

Thể Loại (Type)

Hình Bóng (Silhouette)

Draws silhouettes around your closed objects by rendering lines where the surface normal transitions between pointing toward and away from the camera. It is often good for organic objects (like Suzanne & Sphere), and bad for sharp edges, like a box. It cannot render open mesh objects like open cylinders and flat planes.

Crease (Nếp Gấp)

Shows only edges whose adjacent faces form an angle sharper than the defined view map's Crease Angle.

Crease Angle proof of concept for 121° by LightBWK (blend-file).

Đường Ranh Giới (Border)

Border shows open mesh edges, i.e. edges that belong to only one face. An open cylinder has open edges at the top and bottom, and a plane is open all around. Suzanne's eye socket is an open edge.

Edge Mark

Renders marked edges. See Edge Marks for details.

Đường Công-Tua (Contour)

Draws lines around each object, separating it from other objects behind it, or the scene background.

Đường Viền Ngoài (External Contour)

Draws lines around all objects, separating them from the scene background, but not each other.

Left pair: Contour; Right pair: External Contour.

Ranh Giới Nguyên Vật Liệu (Material Boundary)

Draws lines where two materials meet on the same object.

Đường Công-Tua Gợi Ý (Suggestive Contour)

Draws some lines which would form the Silhouette of the mesh if the view point was shifted. Depends on your view map settings for Kr Derivative Epsilon and Sphere Radius (further information: File:Manual-2.6-Render-Freestyle-PrincetownLinestyle.pdf).

Lằn Gợn & Thung Lũng (Ridge & Valley)

Draws lines marking crests of ridges and valleys, i.e. places where the surface curvature is at its minimum or maximum. Depends on your Sphere Radius view map settings.

Dấu Chỉ Cạnh (Edge Marks)

In Edit Mode you can mark "Freestyle Edges" in the same manner you can mark "Seams" for UV unwrapping or "Sharp" for edge split. These marked edges are available to render when you select Edge Mark.

Mục tiêu chính của bản hướng dẫn sử dụng này là như sau:

1. Select the mesh object and enter "Chế Độ Biên Soạn".

2. Select the edges you want to be marked.

3. Press Ctrl-E and select "Đánh Dấu Cạnh Phong Cách Tự Do".

Edge marks are useful when you want to draw lines along particular mesh edges. The examples below explain the use of edge marks.

Marking Freestyle Edges in Edit Mode; the edge marks are highlighted in green.

With Edge Marks enabled, the previously-marked lines are always rendered. You can see the black contour lines and the blue lines that are made with edge marks.

Render without Edge Marks.

Render with Edge Marks enabled.

What are edge marks good for?

• When you need to render marks on an almost-flat plane, when other edge types cannot detect any line.

• When you want full control of edge rendering. Often used for edges of squarish shapes.

• Mark the whole base mesh to be rendered for base mesh preview.

What are edge marks not good for?

• Round outer edges (use instead "Đường Công-Tua/Đường Viền Ngoài/Hình Bóng").

Dấu Chỉ Mặt (Face Marks)

Face marks are useful for removing lines from certain areas of a mesh.

To set a face mark:

1. Select a mesh object and enter "Chế Độ Biên Soạn".

2. Select the faces you want to be marked.

3. Press Ctrl-F and select Dữ Liệu Mặt (Face Data) ‣ Đánh Dấu Mặt Phong Cách Tự Do (Mark Freestyle Face).

In this example, two faces of the default cube are marked like the image on the left. On the right is a render without face marks activated.

Chế Độ Biên Soạn Khung Lưới.

Đầu Ra của Kết Xuất.

The line selection can be controlled via inclusion and faces options:

Phản Định (Negation)

Whether to include or exclude edges matching defined face mark conditions from the line set.

Điều Kiện (Condition)

Một Mặt (One Face):

(De)select all edges which have one or both neighbor faces marked.

Cả Hai Mặt:

(De)select all edges which have both of their neighbor faces marked.

Inclusive, One Face.	Inclusive, Both Faces.
Exclusive, One Face.	Exclusive, Both Faces.

Collection (Bộ Sưu Tập)

Include or exclude objects for line calculation, based on their belonging to a Collection.

Bộ Sưu Tập Bộ Đường Nét (Line Set Collection)

The name of the object collection to use.

Phản Định (Negation)

Whether to include or exclude lines from those objects in this line set.
