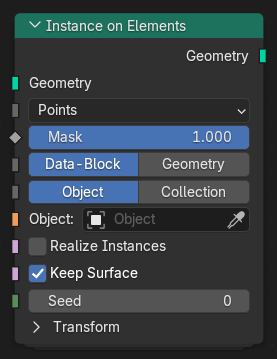

Instance on Elements Node¶
The Instance on Elements node creates instances of an object, collection, or geometry on selected elements of an input geometry. It can be used to distribute instances on points, edges, faces, or face corners, providing flexibility for procedural instancing workflows.
Inputs – Уводи¶
- Геометрія
The geometry on which to create instances.
- Instance On
The geometry element type to instance on.
- Points – Точки:
Instances are created at the location of each point.
- Edges – Краї:
Instances are placed along edges.
- Обличчя:
Instances are placed on the surface of each face.
- Corners – Кутки:
Instances are created at each face corner (vertex per face).
- Маска
A selection controlling which elements are used for instancing. Floating-point values between 0 and 1 are treated as probabilistic selections, resulting in a random subset of elements being used.
- Input Type
Defines how the instance geometry input is provided.
- Data-Block – Блок Даних:
Instances are created from an object or collection data-block.
- Геометрія:
Instances are created from input geometry provided to the node.
- Instance Type Data-Block
When using Data-Block input, determines whether to instance an Object or a Collection.
- Object / Collection Data-Block
The specific object or collection to instance when using Data-Block input mode.
- Instance Geometry
The geometry to instance when using Geometry input mode.
- Realize Instances
Converts all instances into real geometry, producing a single combined geometry output. This can be required for some subsequent geometry operations or modifiers.
- Keep Surface
Keeps the underlying surface used for instancing, rather than outputting only the instances.
- Базис – Seed
Random seed value used to vary random selections or random instance indexing.
Pick Instance Data-Block Collection¶
When instancing from a collection, this option enables random or controlled selection of which child object to instance per element.
- Instance Index
Determines how a child instance is chosen from the collection.
- Random – Випадково:
Picks a random object from the collection for each element.
- Sequence – Послідовність:
Cycles through objects in collection order.
- Input – Увід:
Uses the value from the Instance Index input socket.
- Instance Index Input
Specifies the index of the object in the collection to be instanced, used when the Instance Index method is set to Input.
Трансформувати¶
- Surface Offset
Moves instances along the element normal, offsetting them from the surface.
- Align Rotation
Aligns instance rotation to the orientation of the geometry element (e.g., normal direction).
- Масштаб
Controls the uniform or per-axis scaling of instances.
Outputs – Виводи¶
- Геометрія
The resulting geometry containing all instances created on the selected elements.
