Agregats de nodes¶
Un agregat és un contenidor que agrupa múltiples valors en un sol born. Això permet passar molts valors a través d’un únic enllaç, similar a un struct en programació.
Els agregats redueixen el nombre d’entrades i sortides exposades en un grup de nodes i poden contenir tipus de dades mixtos com ara geometria, camps, valors, objectes o fins i tot agregats aniuats.

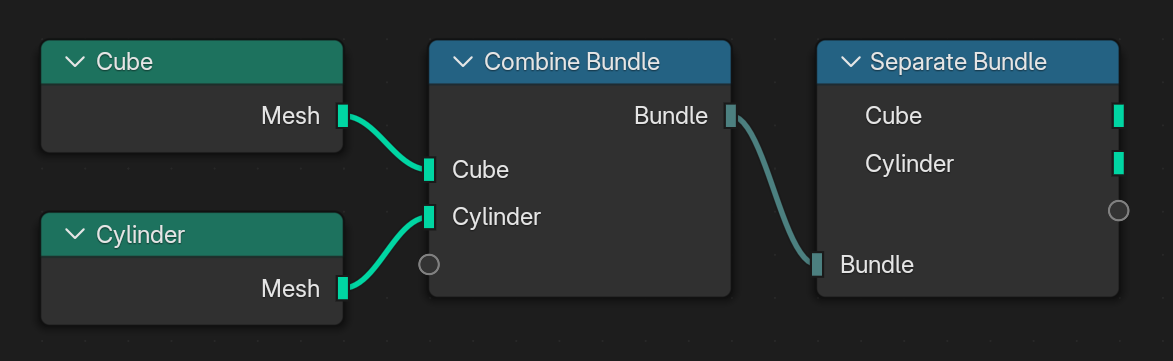

Un cub i un cilindre combinats en un agregat i després separats de nou.¶
Nodes¶
Per treballar amb agregats, es faciliten els nodes que segueixen:
Bundle nodes allow adding or removing an arbitrary number of sockets, with flexible type support.
Bundles can be attached to geometry using get/set geometry bundle nodes. These can be used to pass bundled data between modifiers and objects.
Typed Bundles¶
A typed bundle is a bundle that contains a special Type item identifying its purpose. The type is stored as a string and allows node groups to recognize bundles without relying on their internal structure.
Using types makes bundles easier to exchange between node groups and different Geometry Nodes modifiers, since a node group can search for a specific type rather than assuming a particular bundle layout.
Bundles can also contain other bundles, allowing complex data to be organized hierarchically.
Creating Typed Bundles¶
The Add Typed Bundle operator creates a typed bundle by constructing a bundle containing the required Type item.
Important
The string item named Type is reserved for identifying typed bundles.
It should not be used for any other purpose within a bundle.
Searching Typed Bundles¶
The Get Nested Bundle Paths node searches a bundle hierarchy for bundles with a matching type.
This allows node groups to locate typed bundles even when they are nested inside other bundles.
For example, a geometry may contain multiple bundles describing different components. A node group can search for all bundles of a particular type without requiring them to exist at a fixed location.
Operativa¶
Els agregats són pràctics per a moltes procedimentacions:
Interfícies simplificades – agrupa les entrades en un únic born i es veu més clar.
Simulacions de física – empaqueta totes les entitats i restriccions de cara a un resolutor.
Sistemes declaratius – emmagatzema dades estructurades complexes per a avaluar-les més endavant.
Conjunts de textures – combina els mapes PBR (Color base, Rugositat, Normals) en un sol born.
Sincronització de borns¶
Els Agregats fan servir els noms de born sòcol per a connectar-ne les entrades i sortides. Si dos nodes d’un agregat estan connectats, però tenen signatures que no conlliguen, Blender pot oferir de sincronitzar-los automàticament.
La sincronització es produeix automàticament en connectar un node per primera vegada.
Els borns existents mai no s’actualitzen automàticament per així evitar de sobreescriure de dades.
El botó (Sincronitzar borns) apareix en el capçal node quan es detecta algun desajustament per fer possible una sincronització manual.
